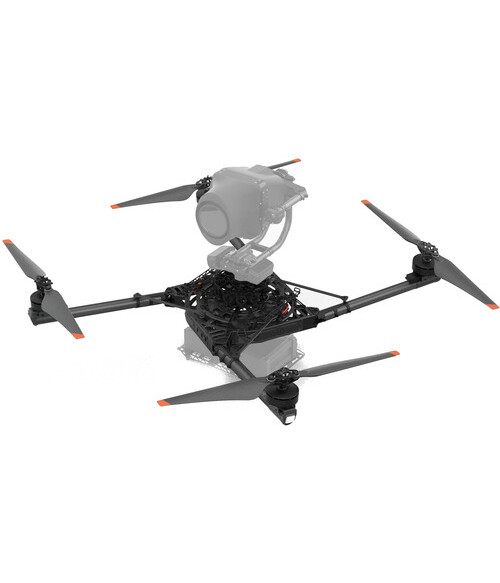

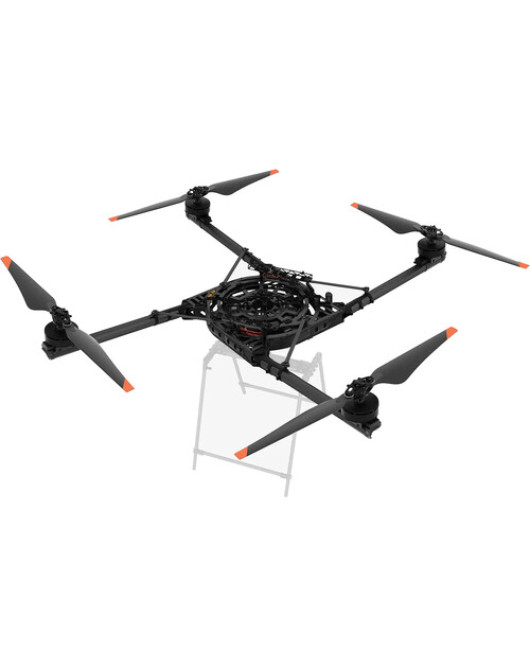

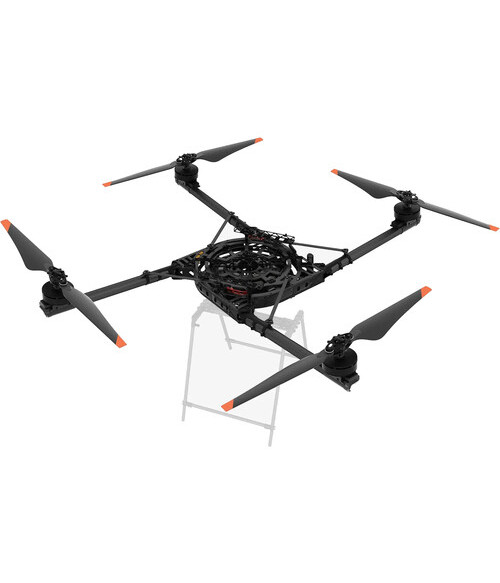

Designed exclusively for industrial operators, the compact, powerful, and customizable, Alta X Drone from FREEFLY Systems is an NDAA-compliant modular quadcopter platform that can meet many mission parameters. From RTK mapping to carrying heavy payloads, the Alta X can be combined with a variety of optional modules, payloads, and accessories. The Alta X frame comes equipped with four props and motors, with each of the propellers featuring FREEFLY's ActiveBlade design. ActiveBlade tilts the blade in forward flight to help drastically reduce vibration.
The powerful motors and propellers also help give the Alta X its strength. The Alta X can lift and fly payloads up to 35 lb while still maintaining a trust ratio of 1.9:1. With 35 lb of added gear, the Alta X can fly for up to 10.75 minutes. Without any payloads, the Alta X has a 3.5:1 thrust ratio and up to 50 minutes of flight time. Please note that a payload, flight battery, and charger are not included.

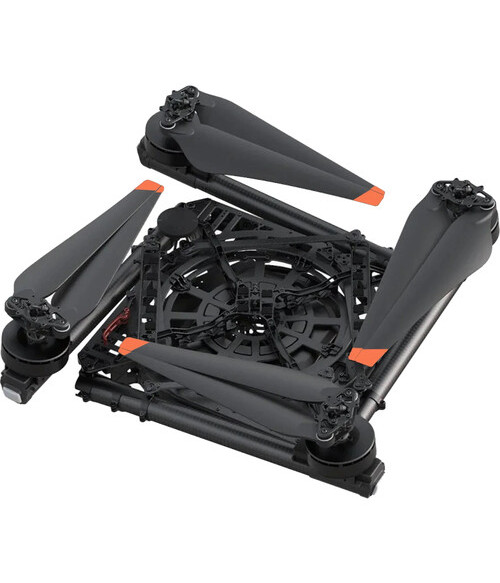

No matter how you use the Alta X, the drone is engineered for easy transport and quick deployment. The propellers and arms fold to cut its physical size by half, and with just a push of your finger, you can expand the drone to full size. When expanded, the linkages stiffen the booms to help ensure accurate, low-vibration flight. When folded, it fits conveniently into the included hard-shell travel case.
Auterion Enterprise PX4
The Auterion is the operating system of the Alta X. It's designed to automate logging and compliance, support RTK use with photo logging, and work with the MAVSDK API for custom software solutions. Custom solutions you can design to be sent from the ground via radio, or onboard via an optional expansion computer.
Powered Expansion Ports
Some of the optional modules and accessories you can mount onto the Alta X require power, and the Alta X is made to provide that with three battery power outputs. Each output provides 10A of current and you can use optional 5 or 12V DC converters to power payloads.
Hard-Shell Travel Case
Made from a tough and rugged Pelican hard-shell case, this travel case for the Alta X provides storage for the drone and optional Futaba 14SG, Skyview landing gear, and other accessories. Everything is organized and kept safe in compartments that have been custom cut out of a closed-cell foam insert. Once closed, built-in wheels and an extendable handle helps to make transportation easier.
Additional Features
- Pilot Pro controller with RFD900 radio link is included
- Alta X, Pilot Pro, and RFD900 radio link are NDAA compliant
- Standard Remote ID pre-enabled
- RTK Ready with optional RTK ground station module and computer
- FC flight modes: Manual, altitude, position, mission, loiter, orbit, and return
- Orientation lights mounted on boom tips
- Multicolor orientation lights: Red, orange, yellow, green, cyan, blue, purple, white, and off
- Propellers are carbon fiber-filled nylon
Key Features
- NDAA Compliant
- Flight Batteries & Charge Not Included
- Pilot Pro Remote with RFD900 Included
- Standard Remote ID Pre-Enabled
- Supports Payloads up to 35 lb
- 10.75 to 50 Minutes of Flight Time
- Foldable Design for Easy Transport
- 3 x Powered Expansion Ports
- 5 or 12 VDC per Expansion Port
- Multiple FC Flight Modes
- FREEFLY Alta X Drone with Pilot Pro (NDAA Compliant)
- Alta X Travel Case
- Pilot Pro Controller with RFD900 Radio Link
- Pilot Pro Travel Case
- 2 x Fuse Mini 297 32V 10A
- 2 x Replacement Battery Strap
- 2 x Active Blade Bumper (Black)
- 2 x Active Blade Bumper (Gray)
- 5 x M4x16 Combo Head Bolt
- 5 x M4x10 Combo Head Bolt
- 5 x M3x18 Combo Head Bolt
- 5 x M4x14 Combo Head Bolt
- 5 x M4x8 Combo Head Bolt
- USB-C to USB-A Cable (3.3')
- Hex Driver (2mm)
- Hex Driver (2.5mm)
- Hex Driver (3mm)
- Limited 1-Year Manufacturer Warranty
FREEFLY Alta X Drone with Pilot Pro (NDAA Compliant)
- Product Code: FR95000164
Designed exclusively for industrial operators, the compact, powerful, and customizable, Alta X Drone from FREEFLY Systems is an NDAA-compliant modular quadcopter platform that can meet many mission parameters. From RTK mapping to carrying heavy payloads, the Alta X can be combined with a variety of optional modules, payloads, and accessories. The Alta X frame comes equipped with four props and motors, with each of the propellers featuring FREEFLY's ActiveBlade design. ActiveBlade tilts the blade in forward flight to help drastically reduce vibration.
The powerful motors and propellers also help give the Alta X its strength. The Alta X can lift and fly payloads up to 35 lb while still maintaining a trust ratio of 1.9:1. With 35 lb of added gear, the Alta X can fly for up to 10.75 minutes. Without any payloads, the Alta X has a 3.5:1 thrust ratio and up to 50 minutes of flight time. Please note that a payload, flight battery, and charger are not included.
No matter how you use the Alta X, the drone is engineered for easy transport and quick deployment. The propellers and arms fold to cut its physical size by half, and with just a push of your finger, you can expand the drone to full size. When expanded, the linkages stiffen the booms to help ensure accurate, low-vibration flight. When folded, it fits conveniently into the included hard-shell travel case.
Auterion Enterprise PX4
The Auterion is the operating system of the Alta X. It's designed to automate logging and compliance, support RTK use with photo logging, and work with the MAVSDK API for custom software solutions. Custom solutions you can design to be sent from the ground via radio, or onboard via an optional expansion computer.
Powered Expansion Ports
Some of the optional modules and accessories you can mount onto the Alta X require power, and the Alta X is made to provide that with three battery power outputs. Each output provides 10A of current and you can use optional 5 or 12V DC converters to power payloads.
Hard-Shell Travel Case
Made from a tough and rugged Pelican hard-shell case, this travel case for the Alta X provides storage for the drone and optional Futaba 14SG, Skyview landing gear, and other accessories. Everything is organized and kept safe in compartments that have been custom cut out of a closed-cell foam insert. Once closed, built-in wheels and an extendable handle helps to make transportation easier.
Additional Features
- Pilot Pro controller with RFD900 radio link is included
- Alta X, Pilot Pro, and RFD900 radio link are NDAA compliant
- Standard Remote ID pre-enabled
- RTK Ready with optional RTK ground station module and computer
- FC flight modes: Manual, altitude, position, mission, loiter, orbit, and return
- Orientation lights mounted on boom tips
- Multicolor orientation lights: Red, orange, yellow, green, cyan, blue, purple, white, and off
- Propellers are carbon fiber-filled nylon
Key Features
- NDAA Compliant
- Flight Batteries & Charge Not Included
- Pilot Pro Remote with RFD900 Included
- Standard Remote ID Pre-Enabled
- Supports Payloads up to 35 lb
- 10.75 to 50 Minutes of Flight Time
- Foldable Design for Easy Transport
- 3 x Powered Expansion Ports
- 5 or 12 VDC per Expansion Port
- Multiple FC Flight Modes
- FREEFLY Alta X Drone with Pilot Pro (NDAA Compliant)
- Alta X Travel Case
- Pilot Pro Controller with RFD900 Radio Link
- Pilot Pro Travel Case
- 2 x Fuse Mini 297 32V 10A
- 2 x Replacement Battery Strap
- 2 x Active Blade Bumper (Black)
- 2 x Active Blade Bumper (Gray)
- 5 x M4x16 Combo Head Bolt
- 5 x M4x10 Combo Head Bolt
- 5 x M3x18 Combo Head Bolt
- 5 x M4x14 Combo Head Bolt
- 5 x M4x8 Combo Head Bolt
- USB-C to USB-A Cable (3.3')
- Hex Driver (2mm)
- Hex Driver (2.5mm)
- Hex Driver (3mm)
- Limited 1-Year Manufacturer Warranty
- Brand: FREEFLY
- Product Code: FR95000164
- Availability: In Stock
