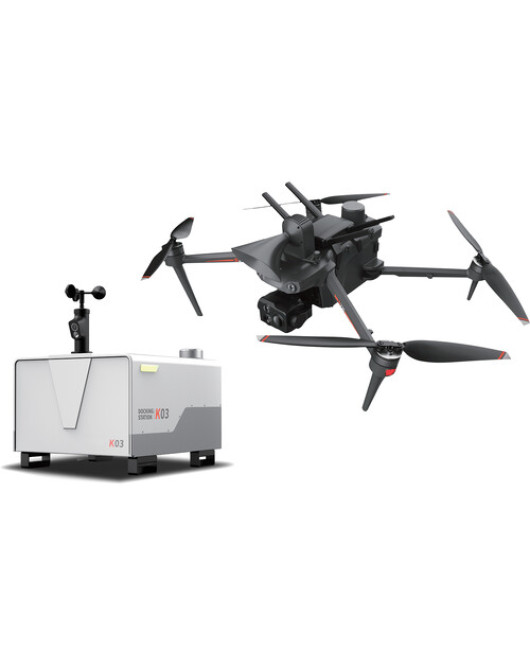

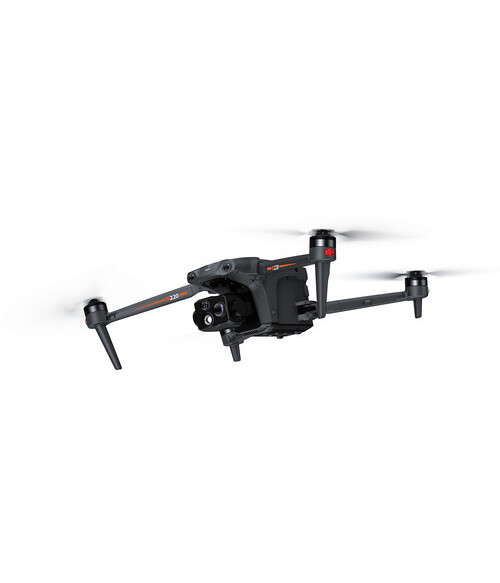

Offering next-level thermal detail and full autonomous flight, the GDU S220 Pro Industrial Drone with K02 Docking Station from YUNEEC features a quad-sensor gimbal with a 50MP wide-angle lens, a telephoto with 10x optical and 160x hybrid zoom, a laser rangefinder, and a thermal lens with 1K 1280 x 1024 resolution. An improvement over many other thermal sensors, the S220 Pro can provide inspectors and first responders with incredibly fine detail. While in flight, pilots can take advantage of AI smart recognition for long-range detection and tracking, plus autonomous route flying indoors where GNSS access is unavailable. AI is also employed with the K02 docking station, which lets you achieve fully automatic and autonomous operations.
AI Smart Recognition
It integrates multi-sensor, AI-based object recognition with real-time edge detection and subject tracking. The system can detect people from up to 1.2 miles away and vehicles from up to 3.7 miles away, while recognizing each from up to 984' away.
Emergency Satellite Communication

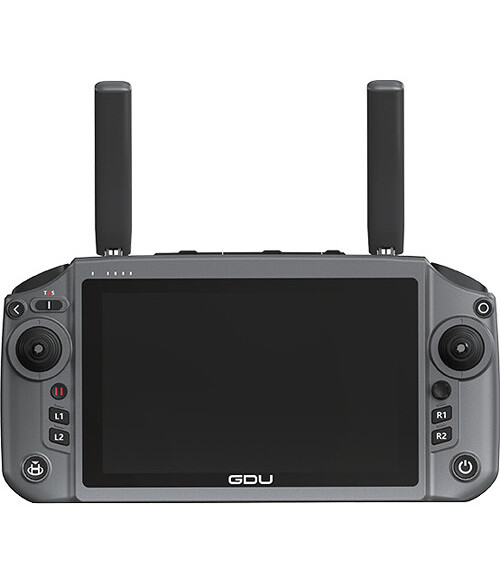

There are plenty of instances where commercial and governmental missions take pilots out of range of terrestrial wireless communications, such as when at sea or in remote areas. Emergency communication in these situations can be critical, which is why the S220 Pro is outfitted with a remote controller with the ability for direct satellite communication.
GDU Software Integration
GDU Flight II is a companion app that offers flight planning, drone control, and more. It works together with the GDU UVER smart management platform. With GDU UVER and GDU Flight II, operators can gather flight information for uploading to the cloud, employ operation and maintenance monitoring, as well as data processing and synchronization.
Additional Details
- Integrated 5G cellular link for live 4K streaming
- Docking station offers battery charging/replacement and always-on standby cloud control
- 720° obstacle avoidance
- Return-to-home with obstacle avoidance if the signal to the drone is weak or lost
- IP43 water and dust resistance
- Up to 45 minutes of flight time
- Image transmission with a range of up to 9.3 miles
- Powered by an octa-core processor
- AI platform with 21T of onboard power and 100T of edge computing power
- Supports optional S200 payloads and accessories, such as a parachute, megaphone, or RTK module
Key Features
- Quad-Sensor Gimbal & Docking Station
- Long-Range AI Detection/Tracking
- AI Indoor Flight without GNSS
- Thermal Imaging with 1K Resolution
- Telephoto Lens & 50MP Wide-Angle Lens
- Laser Rangefinder with 0.9-Mile Range
- Remote with Direct Satellite Connection
- 5G Cellular Access for Live 4K Streaming
- 720° Obstacle Avoidance
- Up to 45 Minutes of Flight Time
- YUNEEC GDU S220 Pro Industrial Drone with K02 Docking Station
- K02 Docking Station
- Remote Controller
- Charger
- Charging Dock
- Spare Propeller
- Charging Cable
- Safety Box
- Screwdriver
- Limited 1-Year Manufacturer Warranty
| Key Specs | |
|---|---|
| Maximum Flight Time | 45 Minutes |
| Remote ID | Yes |
| Camera System | Wide 50 MP, 1"-Type CMOS Sensor with 24mm-Equivalent Lens Telephoto Size-Unspecified CMOS Sensor with Lens |
| Still Image Support | Yes |
| Sensing System | Omnidirectional (Optical Only) |
| Control Method | Included Transmitter |
| Weight | 4.5 lb / 2050 g (Takeoff) |
| Performance | |
|---|---|
| Maximum Ascent Speed | 17.9 mph / 8 m/s |
| Maximum Descent Speed | 13.4 mph / 6 m/s |
| Maximum Wind Resistance | 26.8 mph / 12 m/s |
| Maximum Take-Off Altitude | 3.7 Miles / 6000 m |
| Maximum Flight Time | 45 Minutes |
| Maximum Tilt Angle | Not Specified by Manufacturer |
| Hovering Accuracy | RTK Vertical: ±0.0' / 1.5 cm Horizontal: ±0.0' / 1 cm |
| Maximum Angular Velocity | Not Specified by Manufacturer |
| Aircraft | |
|---|---|
| Rotor Configuration | Quadcopter |
| Remote ID | Yes |
| Imaging | |
|---|---|
| Number of Cameras | 1 |
| Camera System | Wide 50 MP, 1"-Type CMOS Sensor with 24mm-Equivalent Lens Telephoto Size-Unspecified CMOS Sensor with Lens |
| Zoom | Telephoto: 10x Optical Thermal: 32x Digital |
| Night Vision | No |
| Still Image Support | Yes |
| Media/Memory Card Slot | No |
| Internal Storage | No |
| Avoidance / Sensing System | |
|---|---|
| Sensing System | Omnidirectional (Optical Only) |
| Laser Rangefinder | Yes: 0.9 Miles / 1500 m |
| Remote Controller / Transmitter | |
|---|---|
| Control Method | Included Transmitter |
| Maximum Operating Distance | 9.3 Miles / 15 km |
| Clean Video Output | Not Specified by Manufacturer |
| Mobile App Compatible | Yes: Android & iOS |
| App Name | GDU Flight II |
| Built-In Display | No |
| General | |
|---|---|
| GNSS Support | Not Specified by Manufacturer |
| Diagonal Size | 1.6' / 486 mm |
| Weight | 4.5 lb / 2050 g (Takeoff) |
YUNEEC GDU S220 Pro Industrial Drone with K02 Docking Station
- Product Code: YUK02DSS220P
Offering next-level thermal detail and full autonomous flight, the GDU S220 Pro Industrial Drone with K02 Docking Station from YUNEEC features a quad-sensor gimbal with a 50MP wide-angle lens, a telephoto with 10x optical and 160x hybrid zoom, a laser rangefinder, and a thermal lens with 1K 1280 x 1024 resolution. An improvement over many other thermal sensors, the S220 Pro can provide inspectors and first responders with incredibly fine detail. While in flight, pilots can take advantage of AI smart recognition for long-range detection and tracking, plus autonomous route flying indoors where GNSS access is unavailable. AI is also employed with the K02 docking station, which lets you achieve fully automatic and autonomous operations.
AI Smart Recognition
It integrates multi-sensor, AI-based object recognition with real-time edge detection and subject tracking. The system can detect people from up to 1.2 miles away and vehicles from up to 3.7 miles away, while recognizing each from up to 984' away.
Emergency Satellite Communication
There are plenty of instances where commercial and governmental missions take pilots out of range of terrestrial wireless communications, such as when at sea or in remote areas. Emergency communication in these situations can be critical, which is why the S220 Pro is outfitted with a remote controller with the ability for direct satellite communication.
GDU Software Integration
GDU Flight II is a companion app that offers flight planning, drone control, and more. It works together with the GDU UVER smart management platform. With GDU UVER and GDU Flight II, operators can gather flight information for uploading to the cloud, employ operation and maintenance monitoring, as well as data processing and synchronization.
Additional Details
- Integrated 5G cellular link for live 4K streaming
- Docking station offers battery charging/replacement and always-on standby cloud control
- 720° obstacle avoidance
- Return-to-home with obstacle avoidance if the signal to the drone is weak or lost
- IP43 water and dust resistance
- Up to 45 minutes of flight time
- Image transmission with a range of up to 9.3 miles
- Powered by an octa-core processor
- AI platform with 21T of onboard power and 100T of edge computing power
- Supports optional S200 payloads and accessories, such as a parachute, megaphone, or RTK module
Key Features
- Quad-Sensor Gimbal & Docking Station
- Long-Range AI Detection/Tracking
- AI Indoor Flight without GNSS
- Thermal Imaging with 1K Resolution
- Telephoto Lens & 50MP Wide-Angle Lens
- Laser Rangefinder with 0.9-Mile Range
- Remote with Direct Satellite Connection
- 5G Cellular Access for Live 4K Streaming
- 720° Obstacle Avoidance
- Up to 45 Minutes of Flight Time
- YUNEEC GDU S220 Pro Industrial Drone with K02 Docking Station
- K02 Docking Station
- Remote Controller
- Charger
- Charging Dock
- Spare Propeller
- Charging Cable
- Safety Box
- Screwdriver
- Limited 1-Year Manufacturer Warranty
| Key Specs | |
|---|---|
| Maximum Flight Time | 45 Minutes |
| Remote ID | Yes |
| Camera System | Wide 50 MP, 1"-Type CMOS Sensor with 24mm-Equivalent Lens Telephoto Size-Unspecified CMOS Sensor with Lens |
| Still Image Support | Yes |
| Sensing System | Omnidirectional (Optical Only) |
| Control Method | Included Transmitter |
| Weight | 4.5 lb / 2050 g (Takeoff) |
| Performance | |
|---|---|
| Maximum Ascent Speed | 17.9 mph / 8 m/s |
| Maximum Descent Speed | 13.4 mph / 6 m/s |
| Maximum Wind Resistance | 26.8 mph / 12 m/s |
| Maximum Take-Off Altitude | 3.7 Miles / 6000 m |
| Maximum Flight Time | 45 Minutes |
| Maximum Tilt Angle | Not Specified by Manufacturer |
| Hovering Accuracy | RTK Vertical: ±0.0' / 1.5 cm Horizontal: ±0.0' / 1 cm |
| Maximum Angular Velocity | Not Specified by Manufacturer |
| Aircraft | |
|---|---|
| Rotor Configuration | Quadcopter |
| Remote ID | Yes |
| Imaging | |
|---|---|
| Number of Cameras | 1 |
| Camera System | Wide 50 MP, 1"-Type CMOS Sensor with 24mm-Equivalent Lens Telephoto Size-Unspecified CMOS Sensor with Lens |
| Zoom | Telephoto: 10x Optical Thermal: 32x Digital |
| Night Vision | No |
| Still Image Support | Yes |
| Media/Memory Card Slot | No |
| Internal Storage | No |
| Avoidance / Sensing System | |
|---|---|
| Sensing System | Omnidirectional (Optical Only) |
| Laser Rangefinder | Yes: 0.9 Miles / 1500 m |
| Remote Controller / Transmitter | |
|---|---|
| Control Method | Included Transmitter |
| Maximum Operating Distance | 9.3 Miles / 15 km |
| Clean Video Output | Not Specified by Manufacturer |
| Mobile App Compatible | Yes: Android & iOS |
| App Name | GDU Flight II |
| Built-In Display | No |
| General | |
|---|---|
| GNSS Support | Not Specified by Manufacturer |
| Diagonal Size | 1.6' / 486 mm |
| Weight | 4.5 lb / 2050 g (Takeoff) |
- Brand: YUNEEC
- Product Code: YUK02DSS220P
- Availability: In Stock
$19,999.00
