Designed for long-range shooting, surveillance, or tactical observation, Newcon Optik's 15-45x60 Laser Rangefinder Spotting Scope combines a versatile magnification with a powerful IR laser rangefinder. Its 60mm objective lens and fully multi-coated optics produce bright and clear images even in low-light conditions, and the wide magnification range is ideal for scanning large areas then quickly zooming-in for detailed observations of specific subjects.
The built-in IR rangefinder features a mil-dot reticle and an OLED display with eight brightness settings. A USB port allows the use of compatible Android peripherals such as tablets, and a top rail accepts accessories such as lights. The scope is equipped with a three-axis digital compass, meets MIL-STD-810G standards, is submersible to 3.3 feet for 30 minutes, and is nitrogen-filled for a water and fogproof performance. A set of two CR123 batteries (included) will power approximately 5000 measurements.
Optical Performance
- 15 - 45x magnification
- 60mm objective lens
- Anti-reflection fully multi-coated optics
- Field of View: 179-63' at 1000 yd
- Angle of View: 51°
- Three-axis digital compass
Rangefinder
- Etched mil-dot reticle
- 1550nm infrared laser
- Measurement Range: 11-3281 yards
Use and Handling
- Straight-viewing for fast subject acquisition and tracking
- OLED display with eight brightness settings
- USB port for compatible Android peripherals
- Upper Picatinny/Weaver accessory rail
Construction Details
- Meets MIL-STD-810G standards
- Submersible to 3.3' for up to 30 min
- Nitrogen-filled for a water and fogproof performance
Key Features
- 1550nm IR Eye-Safe Laser Rangefinder
- 11-3281 yd Measurement Range
- Etched Mil-Dot Reticle
- OLED Display & USB for Peripherals
- Anti-Reflection Multi-Coated Lenses
- Three-Axis Digital Compass
- Meets MIL-STD-810G Standards
- Nitrogen-Filled, Water and Fogproof
- Runs on 2 x CR123 Batteries
- Battery Life: 5000 Measurements
- Newcon Optik 15-45x60 Laser Rangefinder Spotting Scope (Straight Viewing)
- Eyepiece Cap
- Objective Lens Cap
- Hard Case
- 2 x CR123 Batteries
- Lens Cleaning Kit
- Limited 1-Year Manufacturer Warranty
Key Specifications
| Laser | |
| Laser Type | Class 1 Eye Safe |
|---|---|
| Metering Range | 10.94 to 6017 yd / 10 to 5500 m |
| Accuracy | ±1.09 yd / 1 m |
| Peak Wavelength | 1550 nm |
| Optics | |
| Magnification | 6.5x |
| Objective Lens Diameter | 30 mm |
| Angle of View | 7° (Actual) |
| Field of View | 367.5' @ 1000 yd / 122.01 m @ 1000 m |
| Exit Pupil Diameter | 4.6 mm |
| Eye Relief | 20 mm |
| Dioptric Correction | ±5 |
| Reticle Type | Mil-Dot |
| General | |
| Form Factor | Monocular |
| Power Source | 2x CR123 |
| Display Type | LED |
| Inclinometer | Yes |
| Physical | |
| Tripod Mount | Yes |
| Environmental Resistance | Water-Resistant (IPX8) |
| Fogproof | Yes: Nitrogen Filled |
| Operating Conditions | -31 to 149°F / -35 to 65°C |
| Storage Conditions | -40 to 185°F / -40 to 85°C |
| Dimensions | 4.65 x 4.21 x 2.13" / 11.8 x 10.7 x 5.4 cm |
| Weight | 16.2 oz / 460 g (without Batteries) |

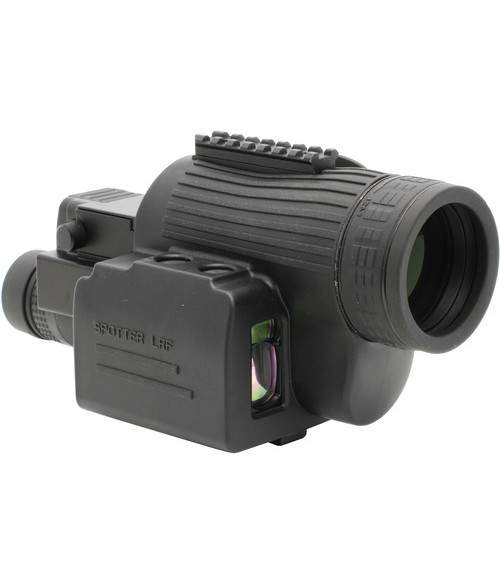

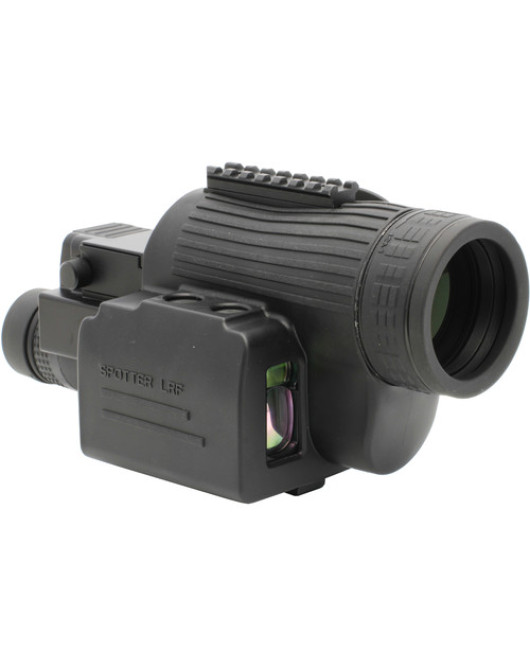

Newcon Optik 15-45x60 Laser Rangefinder Spotting Scope (Straight Viewing)
- Product Code: NE1545X60RSS
Designed for long-range shooting, surveillance, or tactical observation, Newcon Optik's 15-45x60 Laser Rangefinder Spotting Scope combines a versatile magnification with a powerful IR laser rangefinder. Its 60mm objective lens and fully multi-coated optics produce bright and clear images even in low-light conditions, and the wide magnification range is ideal for scanning large areas then quickly zooming-in for detailed observations of specific subjects.
The built-in IR rangefinder features a mil-dot reticle and an OLED display with eight brightness settings. A USB port allows the use of compatible Android peripherals such as tablets, and a top rail accepts accessories such as lights. The scope is equipped with a three-axis digital compass, meets MIL-STD-810G standards, is submersible to 3.3 feet for 30 minutes, and is nitrogen-filled for a water and fogproof performance. A set of two CR123 batteries (included) will power approximately 5000 measurements.
Optical Performance
- 15 - 45x magnification
- 60mm objective lens
- Anti-reflection fully multi-coated optics
- Field of View: 179-63' at 1000 yd
- Angle of View: 51°
- Three-axis digital compass
Rangefinder
- Etched mil-dot reticle
- 1550nm infrared laser
- Measurement Range: 11-3281 yards
Use and Handling
- Straight-viewing for fast subject acquisition and tracking
- OLED display with eight brightness settings
- USB port for compatible Android peripherals
- Upper Picatinny/Weaver accessory rail
Construction Details
- Meets MIL-STD-810G standards
- Submersible to 3.3' for up to 30 min
- Nitrogen-filled for a water and fogproof performance
Key Features
- 1550nm IR Eye-Safe Laser Rangefinder
- 11-3281 yd Measurement Range
- Etched Mil-Dot Reticle
- OLED Display & USB for Peripherals
- Anti-Reflection Multi-Coated Lenses
- Three-Axis Digital Compass
- Meets MIL-STD-810G Standards
- Nitrogen-Filled, Water and Fogproof
- Runs on 2 x CR123 Batteries
- Battery Life: 5000 Measurements
- Newcon Optik 15-45x60 Laser Rangefinder Spotting Scope (Straight Viewing)
- Eyepiece Cap
- Objective Lens Cap
- Hard Case
- 2 x CR123 Batteries
- Lens Cleaning Kit
- Limited 1-Year Manufacturer Warranty
Key Specifications
| Laser | |
| Laser Type | Class 1 Eye Safe |
|---|---|
| Metering Range | 10.94 to 6017 yd / 10 to 5500 m |
| Accuracy | ±1.09 yd / 1 m |
| Peak Wavelength | 1550 nm |
| Optics | |
| Magnification | 6.5x |
| Objective Lens Diameter | 30 mm |
| Angle of View | 7° (Actual) |
| Field of View | 367.5' @ 1000 yd / 122.01 m @ 1000 m |
| Exit Pupil Diameter | 4.6 mm |
| Eye Relief | 20 mm |
| Dioptric Correction | ±5 |
| Reticle Type | Mil-Dot |
| General | |
| Form Factor | Monocular |
| Power Source | 2x CR123 |
| Display Type | LED |
| Inclinometer | Yes |
| Physical | |
| Tripod Mount | Yes |
| Environmental Resistance | Water-Resistant (IPX8) |
| Fogproof | Yes: Nitrogen Filled |
| Operating Conditions | -31 to 149°F / -35 to 65°C |
| Storage Conditions | -40 to 185°F / -40 to 85°C |
| Dimensions | 4.65 x 4.21 x 2.13" / 11.8 x 10.7 x 5.4 cm |
| Weight | 16.2 oz / 460 g (without Batteries) |
- Brand: Newcon Optik
- Product Code: NE1545X60RSS
- Availability: In Stock
$7,399.00
