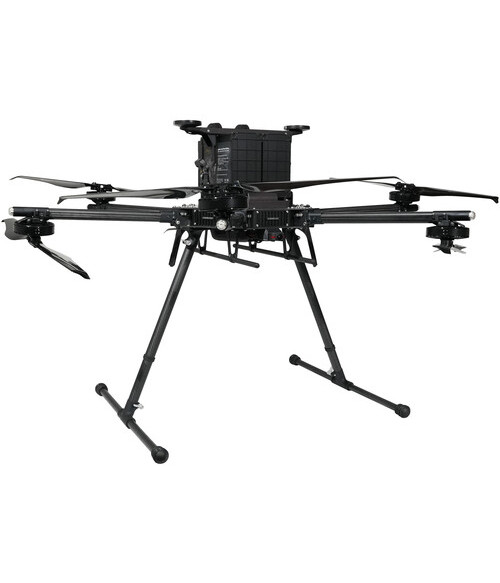

For professions and organizations that need speed, longevity, and power, the IF1200A Commercial Hexacopter Heavy-Lift Drone with Blue Herelink Remote from Inspired Flight checks all of the boxes in a more compact frame than similar UAS solutions. The IF1200A can fly up to 56 mph, for up to 43 min., carry loads up to 19.1 lb, and resist winds up to 23 knots. Whether you're attaching cameras, LiDAR, or essential equipment and supplies, the IF1200A is ideal for everything from powerline inspections and mapping to emergency response and a variety of governmental missions. Keeping this kind of drone compact, Inspired Flight uses a dual propeller system, which overlaps propellers by alternating each arm with either a top- or bottom-mounted blade.
Blue Herelink Ground Control System
Pilot the IF1200A with the included Blue Herelink Ground Control System. This remote controller features a 5.46" touchscreen with a 1000-nit brightness for daytime use and viewing what the drone sees without requiring a smartphone. The video transmission is over the 2.4 GHz frequency and supports a maximum range of up to 12 miles. To help match the remote with your particular piloting style, you can customize the function buttons and wheel. Powering the remote is a built-in 4950 mAh Li-ion battery.
Universal Payload Interface
Workflow is streamlined and productivity is optimized for nearly any type of mission, thanks to the universal payload interface that assists communication between your chosen payload, ground control system, and flight controller. When it comes to payloads, the IF1200A supports an assortment of optical, EO/IR, and LiDAR devices.
Universal Mounting Rail
Providing sturdy payload mounting, the 0.5" diameter booms are mounted 5.9" away from each other, center-to-center.
Flight Modes
- Position Hold: Automatically holds altitude and position, but position can be manually changed if needed
- Loiter: Holds altitude and position with precision manual movements possible using GPS
- Auto: Executes a pre-defined waypoint mission
- RTLAuto: Automatically returns to the takeoff location and lands
- Land: Automatically land while maintaining a horizontal position
- Altitude Hold: Holds altitude with a failsafe mode if the GPS signal is lost
SAFE Drone System
Drone safety is paramount, which is why Inspired Flight implements the SAFE drone system. In the event of a motor failure, the IF1200A will seamlessly transition into a manual flight mode, alert the operator, and immediately land.
Dual Latching GPS
A pair of GPS units is implemented to increase navigation accuracy, but it also serves as a convenient carry handle when the batteries are not installed.
Key Features
- 2 Flight Batteries Needed/Not Included
- Payload is Optional & Not Included
- Overlapping Top/Bottom Propeller System
- Max Flight Time of 43 Minutes
- Max Payload of 19.1 lb
- Max Flight Speed of 56 mph
- Max Wind Resistance of 23 Knots
- 6 Flight Modes
- Dual Latching GPS Structure
- Blue Herelink Ground Control System
- Inspired Flight IF1200A Commercial Hexacopter Heavy-Lift Drone with Blue Herelink Remote
- Battery Charger
- Blue Herelink Ground Control System
- 6 x Folding Propeller
- 2 x Extra Folding Propeller
- Rugged Transport Case
| Key Specs | |
|---|---|
| Maximum Flight Time | 43 Minutes |
| Control Method | Included Transmitter |
| Weight | 17.2 lb / 7.8 kg (Without Battery) 35.9 lb / 16.3 kg (With Battery) 55.1 lb / 25 kg (with Maximum Payload) |
| Performance | |
|---|---|
| Maximum Horizontal Speed | 55.9 mph / 25 m/s |
| Maximum Ascent Speed | 11.2 mph / 5 m/s |
| Maximum Descent Speed | 5.6 mph / 2.5 m/s |
| Maximum Wind Resistance | 26.8 mph / 12 m/s |
| Maximum Take-Off Altitude | 2.4 Miles / 3.9 km |
| Maximum Flight Time | 43 Minutes |
| Maximum Tilt Angle | 30° |
| Hovering Accuracy | Not Specified by Manufacturer |
| Maximum Angular Velocity | 300°/s (Pitch) 45°/s (Yaw) |
| Aircraft | |
|---|---|
| Rotor Configuration | Hexacopter |
| Remote ID | No |
| Operating Conditions | -4 to 113°F / -20 to 45°C |
| Remote Controller / Transmitter | |
|---|---|
| Control Method | Included Transmitter |
| Mobile App Compatible | Yes: Android & iOS |
| General | |
|---|---|
| GNSS Support | GPS |
| Diagonal Size | 40.4" / 1025 mm (Including Propellers) |
| Overall Dimensions | 65.2 x 30.1 x 60.6" / 165.5 x 76.5 x 154.0 cm (Unfolded) 18.7 x 18.5 x 19.5" / 47.5 x 47.0 x 49.5 cm (Folded) |
| Weight | 17.2 lb / 7.8 kg (Without Battery) 35.9 lb / 16.3 kg (With Battery) 55.1 lb / 25 kg (with Maximum Payload) |
| Packaging Info | |
|---|---|
| Package Weight | 65.5 lb |
| Box Dimensions (LxWxH) | 26.25 x 26.25 x 23.25" |

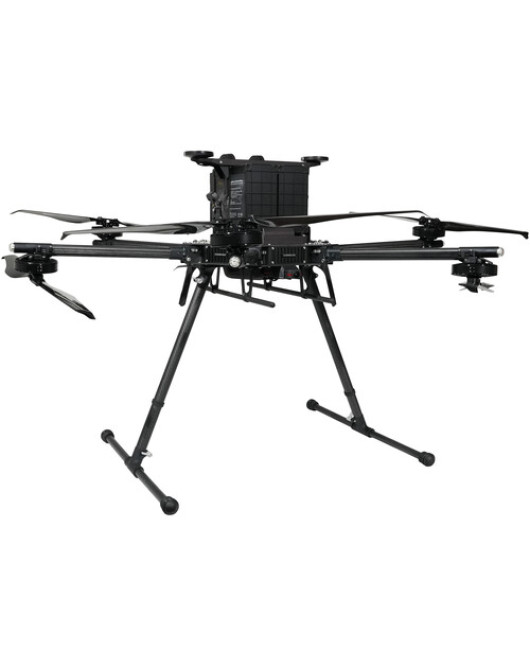

Inspired Flight IF1200A Commercial Hexacopter Heavy-Lift Drone with Blue Herelink Remote
- Product Code: IN102396
For professions and organizations that need speed, longevity, and power, the IF1200A Commercial Hexacopter Heavy-Lift Drone with Blue Herelink Remote from Inspired Flight checks all of the boxes in a more compact frame than similar UAS solutions. The IF1200A can fly up to 56 mph, for up to 43 min., carry loads up to 19.1 lb, and resist winds up to 23 knots. Whether you're attaching cameras, LiDAR, or essential equipment and supplies, the IF1200A is ideal for everything from powerline inspections and mapping to emergency response and a variety of governmental missions. Keeping this kind of drone compact, Inspired Flight uses a dual propeller system, which overlaps propellers by alternating each arm with either a top- or bottom-mounted blade.
Blue Herelink Ground Control System
Pilot the IF1200A with the included Blue Herelink Ground Control System. This remote controller features a 5.46" touchscreen with a 1000-nit brightness for daytime use and viewing what the drone sees without requiring a smartphone. The video transmission is over the 2.4 GHz frequency and supports a maximum range of up to 12 miles. To help match the remote with your particular piloting style, you can customize the function buttons and wheel. Powering the remote is a built-in 4950 mAh Li-ion battery.
Universal Payload Interface
Workflow is streamlined and productivity is optimized for nearly any type of mission, thanks to the universal payload interface that assists communication between your chosen payload, ground control system, and flight controller. When it comes to payloads, the IF1200A supports an assortment of optical, EO/IR, and LiDAR devices.
Universal Mounting Rail
Providing sturdy payload mounting, the 0.5" diameter booms are mounted 5.9" away from each other, center-to-center.
Flight Modes
- Position Hold: Automatically holds altitude and position, but position can be manually changed if needed
- Loiter: Holds altitude and position with precision manual movements possible using GPS
- Auto: Executes a pre-defined waypoint mission
- RTLAuto: Automatically returns to the takeoff location and lands
- Land: Automatically land while maintaining a horizontal position
- Altitude Hold: Holds altitude with a failsafe mode if the GPS signal is lost
SAFE Drone System
Drone safety is paramount, which is why Inspired Flight implements the SAFE drone system. In the event of a motor failure, the IF1200A will seamlessly transition into a manual flight mode, alert the operator, and immediately land.
Dual Latching GPS
A pair of GPS units is implemented to increase navigation accuracy, but it also serves as a convenient carry handle when the batteries are not installed.
Key Features
- 2 Flight Batteries Needed/Not Included
- Payload is Optional & Not Included
- Overlapping Top/Bottom Propeller System
- Max Flight Time of 43 Minutes
- Max Payload of 19.1 lb
- Max Flight Speed of 56 mph
- Max Wind Resistance of 23 Knots
- 6 Flight Modes
- Dual Latching GPS Structure
- Blue Herelink Ground Control System
- Inspired Flight IF1200A Commercial Hexacopter Heavy-Lift Drone with Blue Herelink Remote
- Battery Charger
- Blue Herelink Ground Control System
- 6 x Folding Propeller
- 2 x Extra Folding Propeller
- Rugged Transport Case
| Key Specs | |
|---|---|
| Maximum Flight Time | 43 Minutes |
| Control Method | Included Transmitter |
| Weight | 17.2 lb / 7.8 kg (Without Battery) 35.9 lb / 16.3 kg (With Battery) 55.1 lb / 25 kg (with Maximum Payload) |
| Performance | |
|---|---|
| Maximum Horizontal Speed | 55.9 mph / 25 m/s |
| Maximum Ascent Speed | 11.2 mph / 5 m/s |
| Maximum Descent Speed | 5.6 mph / 2.5 m/s |
| Maximum Wind Resistance | 26.8 mph / 12 m/s |
| Maximum Take-Off Altitude | 2.4 Miles / 3.9 km |
| Maximum Flight Time | 43 Minutes |
| Maximum Tilt Angle | 30° |
| Hovering Accuracy | Not Specified by Manufacturer |
| Maximum Angular Velocity | 300°/s (Pitch) 45°/s (Yaw) |
| Aircraft | |
|---|---|
| Rotor Configuration | Hexacopter |
| Remote ID | No |
| Operating Conditions | -4 to 113°F / -20 to 45°C |
| Remote Controller / Transmitter | |
|---|---|
| Control Method | Included Transmitter |
| Mobile App Compatible | Yes: Android & iOS |
| General | |
|---|---|
| GNSS Support | GPS |
| Diagonal Size | 40.4" / 1025 mm (Including Propellers) |
| Overall Dimensions | 65.2 x 30.1 x 60.6" / 165.5 x 76.5 x 154.0 cm (Unfolded) 18.7 x 18.5 x 19.5" / 47.5 x 47.0 x 49.5 cm (Folded) |
| Weight | 17.2 lb / 7.8 kg (Without Battery) 35.9 lb / 16.3 kg (With Battery) 55.1 lb / 25 kg (with Maximum Payload) |
| Packaging Info | |
|---|---|
| Package Weight | 65.5 lb |
| Box Dimensions (LxWxH) | 26.25 x 26.25 x 23.25" |
- Brand: Inspired Flight
- Product Code: IN102396
- Availability: In Stock
