From land or sea, the Matrice 400 Drone from DJI is their flagship enterprise drone, capable of handling long-endurance and precision operations with ease. For long flights, large mapping areas, and lengthy searches, the Matrice 400 offers up to 59 minutes of forward flight time and up to 53 minutes of hovering time. Thanks to intricate omnidirectional obstacle sensing with integrated rotating LiDAR, mmWave radar, and four full-color low-light fisheye vision sensors, the Matrice 400 can get extremely close to objects and detect items as thin as power lines. Equip almost anything with a payload capacity of up to 13.2 lb and room for three gimbals and up to seven overall payloads.
Payload Performance
Matrice 400 offers a tremendous amount of flexibility when it comes to the payloads you use. It has a capacity of up to 13.2 lb and has connections for up to three gimbals. There are also four external E-Port V2 ports for the overall simultaneous mounting of up to seven payloads. The drone works with the Zenmuse H30, L3, P1, and S1 gimbal cameras, as well as non-camera payloads, such as the Zenmuse V1 loudspeaker or Manifold 3 processing unit.
Enhanced Omnidirectional Obstacle Avoidance
Getting close and staying clear of small to large obstacles is easy with the Matrice 400. It uses integrated rotating LiDAR and mmWave radar for ultra-fine precision and four full-color low-light fisheye vision sensors that provide Full-Color Vision Assist. Together, they let the Matrice 400 detect individual power lines, even in darkness, and get up close to the glass facades of buildings or wind turbine blades. When avoiding obstacles, it can penetrate both rain and fog to detect them, as well as evade buildings, mountains, and other large objects at speeds of up to 55.9 mph.
O4 Enterprise Transmission
With the combination of an integrated 10-antenna array and remote with a high-gain phased array antenna system, the Matrice 400 can transmit video from the drone to the remote's screen from up to 24.8 miles away. Supporting the sub2G frequency band, pilots can pick up the optional Cellular Dongle 2 to automatically switch to the best available carrier network for increased signal stability. An ideal ability and accessory for urban environments.
Airborne Relay Transmission
A built-in video transmission relay module lets the Matrice 400 serve as a relay drone to other Matrice 400 drones, significantly increasing transmission range and operational coverage in mountainous regions.
AR Projection
- Power Line AR: When power lines are detected, the remote's display will overlay colored lines (based on distance) on top of the real power lines for easy avoidance.
- Map View AR: Day or night, this function overlays names of buildings and landmarks on your remote screen when in urban areas.
- AR Flight Waypoint: Your route is clearly overlayed onto your remote's live view from the drone during RTH, obstacle sensing, and FlyTo operations.
- AIR Aircraft Shadow: When landing, pilots will be assisted with an image overlaid onto the landing zone.
- Live Annotations: You can manually annotate on the remote's screen to obtain information, such as drawing lines to determine the distance between objects, tapping a spot to track a subject, or outlining an area to obtain its size. Results can be synced to DJI FlightHub 2 for everyone on your team to see.
Real-Time Terrain Follow
Working in any horizontal direction under either manual or automated flight, this feature keeps a stable relative height to the ground as it flies. This is key in operations like search and rescue, where you don't have to constantly zoom in and out as the size of the object changes. With everything consistent, buildings, trees, and other objects can be addressed quickly, so you can find your subject more easily. It even helps when mapping for higher precision data.
Ship Takeoff and Landing
To accommodate maritime missions, such as patrols or wind turbine inspection, the Matrice 400 can safely take off from stationary ships and land on them, whether they're stationary or moving.
Intelligent Flight Modes
- Cruise: Acting like your car's cruise control, this locks the drone into automatically flying forward, so you can cover long distances without having to constantly push the remote's stick forward.
- FlyTo: This mode will take the environment into account and automatically set the best path and speed needed to get to a specified destination quickly.
- Smart Track: Provides precise subject positioning and automatic zoom while tracking moving objects, lets you switch between subjects easily, and can even reacquire a subject automatically after it has briefly been obscured from the drone's view.
- POI: Enables continuous observation and 3D modeling of buildings as it orbits a designated area, helping to deliver precision to surveillance and mapping operations.
Open Developer Ecosystem
- Intelligent Algorithm Developer: Provides the necessary model training tools and third-party developer certification process to access onboard computing capability.
- PSDK: E-Port V2 supports USB 3.0 high-speed payload communication and up to 120W per port. The E4 port of the E-Port V2 can be expanded into four payload ports via the optional E-Port Hub expansion plate, unlocking broader application scenarios for the Matrice 400.
- MSDK: Simplifies the development of apps to control the Matrice 400 with fully open-source, production-level code samples with core modules adapted from DJI Pilot 2.
- Cloud API: With DJI Pilot 2's built-in Cloud API (MQTT-based protocol), you can directly connect the Matrice 400 to third-party cloud platforms. Access the drone's hardware, video live stream, and photo data without having to develop an app.
- Open Data Access: Developers can leverage payload, LiDAR, mmWave radar, and vision sensor data interfaces to build innovative applications.
Additional Details
- TB100 flight battery required and not included.
- Smart Detection of vehicles, vessels, and subjects using optional payloads, such as the Zenmuse 3.
- Automated power transmission and distribution line following flights with optional Zenmuse L2/L3.
- Plan slope or geometric routes with DJI Pilot 2 or DJI FlightHub 2.
- Works with DJI FlightHub 2, Terra, and Modify software.
- User data security with media data encryption, local data mode, one-tap clear logs, AES-256 video transmission encryption, and Cloud API.
Key Features
- TB100 Flight Battery Not Included
- Power-Line-Level Obstacle Detection
- Rotating LiDAR & mmWave Radar
- 4 Full-Color Low-Light Fisheye Sensors
- Payload Capacity of up to 13.2 lb
- 3 Gimbal Payload Connectors
- 4 E-Port V2 Payload Ports
- Up to 59 Minutes of Forward Flight
- Up to 53 Minutes of Hover
- Video Transmission of up to 24.8 Miles

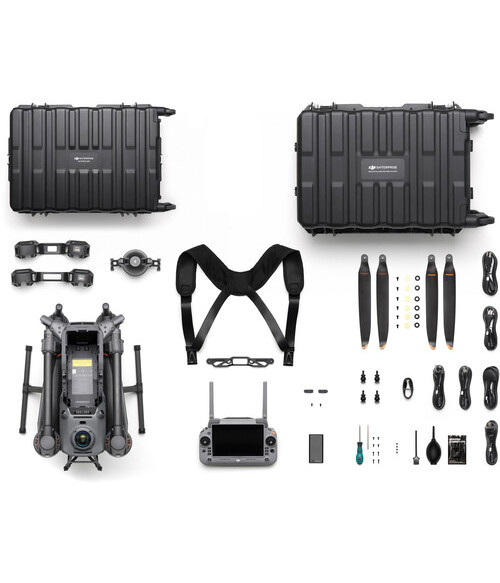

- DJI Matrice 400 Drone
- Remote Controller
- WB37 Controller Battery
- Carrying Case
- 2 x Landing Gear
- 2 x Propeller
- 6 x Propeller Washer and Screw
- Remote Controller Strap and Bracket
- USB-C Cable
- Power Cable
- 4 x Gimbal Damper
- Screws and Tools Set
- Cleaning Tools Set
- Rubber Port Covers and Screws Set
| Key Specs | |
|---|---|
| Maximum Flight Time | 59 Minutes |
| Remote ID | Yes |
| Sensing System | Omnidirectional with LiDAR/Radar Enhancement |
| Control Method | Included Transmitter |
| Weight | 11.0 lb / 5020 g (With Propellers) 21.4 lb / 9740 g (With Propellers, Battery) 34.8 lb / 15.8 kg (Takeoff) |
| Performance | |
|---|---|
| Maximum Horizontal Speed | 55.9 mph / 25 m/s |
| Maximum Ascent Speed | 22.4 mph / 10 m/s |
| Maximum Descent Speed | 17.9 mph / 8 m/s |
| Maximum Wind Resistance | 26.8 mph / 12 m/s |
| Maximum Take-Off Altitude | 4.3 Miles / 7000 m |
| Maximum Flight Time | 59 Minutes |
| Maximum Hover Time | 53 Minutes |
| Maximum Tilt Angle | 35° |
| Hovering Accuracy | Vision Positioning Vertical: ±0.3' / 0.1 m Horizontal: ±1.0' / 0.3 m RTK Vertical: ±0.3' / 0.1 m Horizontal: ±0.3' / 0.1 m GNSS Vertical: ±1.6' / 0.5 m Horizontal: ±1.6' / 0.5 m |
| Maximum Angular Velocity | 100°/s (Yaw) |
| Aircraft | |
|---|---|
| Rotor Configuration | Quadcopter |
| Propeller Size | 25" |
| Remote ID | Yes |
| Aircraft I/O | 1x USB-C Input/Output (Service) 4x E-Port Input/Output (Expansion, Power) |
| Operating Conditions | -4 to 122°F / -20 to 50°C |
| Avoidance / Sensing System | |
|---|---|
| Sensing System | Omnidirectional with LiDAR/Radar Enhancement |
| Sensing Capabilities | Forward Measurement Range: 1.3 to 68.9' / 0.4 to 21 m Detection Range: 1.3 to 656.2' / 0.4 to 200 m Field of View: 90° (Horizontal) / 90° (Vertical) Backward Measurement Range: 2.0 to 68.9' / 0.6 to 21 m Detection Range: 1.6 to 656.2' / 0.5 to 200 m Field of View: 90° (Horizontal) / 90° (Vertical) Lateral Measurement Range: 2.0 to 68.9' / 0.6 to 21 m Detection Range: 1.6 to 656.2' / 0.5 to 200 m Field of View: 90° (Horizontal) / 90° (Vertical) Downward Measurement Range: 1.6 to 62.3' / 0.5 to 19 m Field of View: 160° (Front-to-Back) / 105° (Side-to-Side) |
| Remote Controller / Transmitter | |
|---|---|
| Control Method | Included Transmitter |
| Transmission System | OcuSync 4.0 (OC4) |
| Frequencies | 2.4 GHz / 5.1 GHz / 5.8 GHz |
| Maximum Operating Distance | 30.4 Miles / 49 km |
| Transmitter I/O | 1x HDMI Output (Audio, Video) 1x USB-C Input (Power) |
| Battery Type | Built-In Lithium-Ion (6500 mAh) |
| Operating Temperature | -4 to 122°F / -20 to 50°C |
| Mobile App Compatible | No |
| Built-In Display | 7.02" (1920 × 1200) Touchscreen LCD, 1400 nits |
| Dimensions | 6.4 x 3.7 x 10.6" / 163 x 94.5 x 268 mm |
| General | |
|---|---|
| GNSS Support | GPS, GLONASS, BeiDou, Galileo |
| Diagonal Size | 3.5' / 1070 mm |
| Overall Dimensions | 29.9 x 18.9 x 38.6" / 760 x 480 x 980 mm (Unfolded) 19.3 x 18.9 x 19.3" / 490 x 480 x 490 mm (Folded) |
| Weight | 11.0 lb / 5020 g (With Propellers) 21.4 lb / 9740 g (With Propellers, Battery) 34.8 lb / 15.8 kg (Takeoff) |
| Packaging Info | |
|---|---|
| Package Weight | 44.515 lb |
| Box Dimensions (LxWxH) | 33.2 x 22.3 x 15.5" |

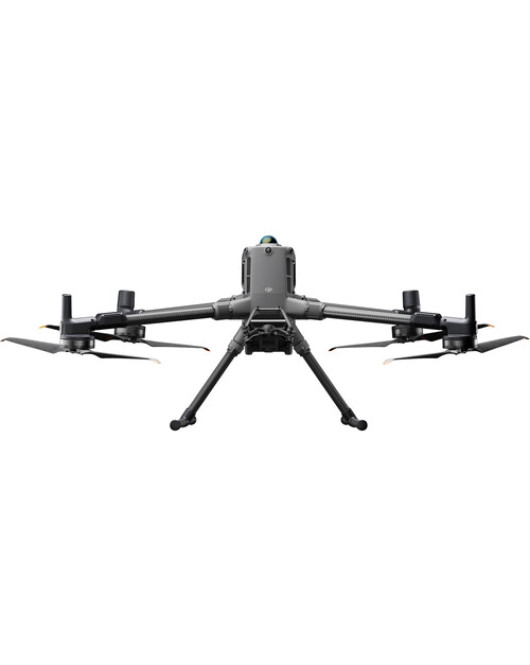

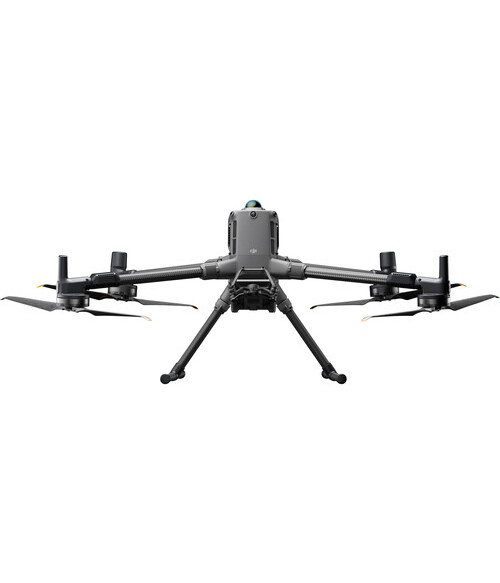

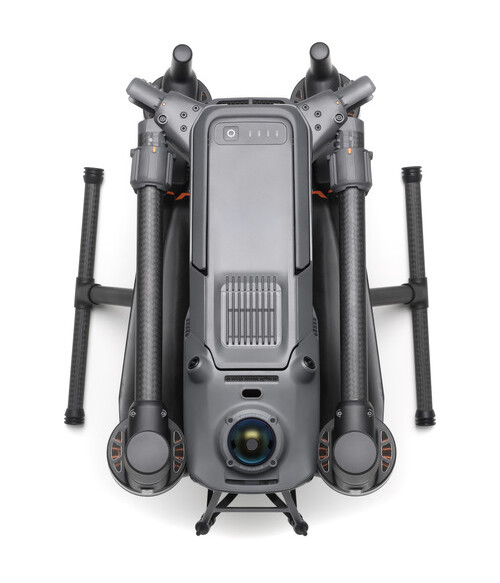

DJI Matrice 400 Drone
- Product Code: DJMT400SPC
From land or sea, the Matrice 400 Drone from DJI is their flagship enterprise drone, capable of handling long-endurance and precision operations with ease. For long flights, large mapping areas, and lengthy searches, the Matrice 400 offers up to 59 minutes of forward flight time and up to 53 minutes of hovering time. Thanks to intricate omnidirectional obstacle sensing with integrated rotating LiDAR, mmWave radar, and four full-color low-light fisheye vision sensors, the Matrice 400 can get extremely close to objects and detect items as thin as power lines. Equip almost anything with a payload capacity of up to 13.2 lb and room for three gimbals and up to seven overall payloads.
Payload Performance
Matrice 400 offers a tremendous amount of flexibility when it comes to the payloads you use. It has a capacity of up to 13.2 lb and has connections for up to three gimbals. There are also four external E-Port V2 ports for the overall simultaneous mounting of up to seven payloads. The drone works with the Zenmuse H30, L3, P1, and S1 gimbal cameras, as well as non-camera payloads, such as the Zenmuse V1 loudspeaker or Manifold 3 processing unit.
Enhanced Omnidirectional Obstacle Avoidance
Getting close and staying clear of small to large obstacles is easy with the Matrice 400. It uses integrated rotating LiDAR and mmWave radar for ultra-fine precision and four full-color low-light fisheye vision sensors that provide Full-Color Vision Assist. Together, they let the Matrice 400 detect individual power lines, even in darkness, and get up close to the glass facades of buildings or wind turbine blades. When avoiding obstacles, it can penetrate both rain and fog to detect them, as well as evade buildings, mountains, and other large objects at speeds of up to 55.9 mph.
O4 Enterprise Transmission
With the combination of an integrated 10-antenna array and remote with a high-gain phased array antenna system, the Matrice 400 can transmit video from the drone to the remote's screen from up to 24.8 miles away. Supporting the sub2G frequency band, pilots can pick up the optional Cellular Dongle 2 to automatically switch to the best available carrier network for increased signal stability. An ideal ability and accessory for urban environments.
Airborne Relay Transmission
A built-in video transmission relay module lets the Matrice 400 serve as a relay drone to other Matrice 400 drones, significantly increasing transmission range and operational coverage in mountainous regions.
AR Projection
- Power Line AR: When power lines are detected, the remote's display will overlay colored lines (based on distance) on top of the real power lines for easy avoidance.
- Map View AR: Day or night, this function overlays names of buildings and landmarks on your remote screen when in urban areas.
- AR Flight Waypoint: Your route is clearly overlayed onto your remote's live view from the drone during RTH, obstacle sensing, and FlyTo operations.
- AIR Aircraft Shadow: When landing, pilots will be assisted with an image overlaid onto the landing zone.
- Live Annotations: You can manually annotate on the remote's screen to obtain information, such as drawing lines to determine the distance between objects, tapping a spot to track a subject, or outlining an area to obtain its size. Results can be synced to DJI FlightHub 2 for everyone on your team to see.
Real-Time Terrain Follow
Working in any horizontal direction under either manual or automated flight, this feature keeps a stable relative height to the ground as it flies. This is key in operations like search and rescue, where you don't have to constantly zoom in and out as the size of the object changes. With everything consistent, buildings, trees, and other objects can be addressed quickly, so you can find your subject more easily. It even helps when mapping for higher precision data.
Ship Takeoff and Landing
To accommodate maritime missions, such as patrols or wind turbine inspection, the Matrice 400 can safely take off from stationary ships and land on them, whether they're stationary or moving.
Intelligent Flight Modes
- Cruise: Acting like your car's cruise control, this locks the drone into automatically flying forward, so you can cover long distances without having to constantly push the remote's stick forward.
- FlyTo: This mode will take the environment into account and automatically set the best path and speed needed to get to a specified destination quickly.
- Smart Track: Provides precise subject positioning and automatic zoom while tracking moving objects, lets you switch between subjects easily, and can even reacquire a subject automatically after it has briefly been obscured from the drone's view.
- POI: Enables continuous observation and 3D modeling of buildings as it orbits a designated area, helping to deliver precision to surveillance and mapping operations.
Open Developer Ecosystem
- Intelligent Algorithm Developer: Provides the necessary model training tools and third-party developer certification process to access onboard computing capability.
- PSDK: E-Port V2 supports USB 3.0 high-speed payload communication and up to 120W per port. The E4 port of the E-Port V2 can be expanded into four payload ports via the optional E-Port Hub expansion plate, unlocking broader application scenarios for the Matrice 400.
- MSDK: Simplifies the development of apps to control the Matrice 400 with fully open-source, production-level code samples with core modules adapted from DJI Pilot 2.
- Cloud API: With DJI Pilot 2's built-in Cloud API (MQTT-based protocol), you can directly connect the Matrice 400 to third-party cloud platforms. Access the drone's hardware, video live stream, and photo data without having to develop an app.
- Open Data Access: Developers can leverage payload, LiDAR, mmWave radar, and vision sensor data interfaces to build innovative applications.
Additional Details
- TB100 flight battery required and not included.
- Smart Detection of vehicles, vessels, and subjects using optional payloads, such as the Zenmuse 3.
- Automated power transmission and distribution line following flights with optional Zenmuse L2/L3.
- Plan slope or geometric routes with DJI Pilot 2 or DJI FlightHub 2.
- Works with DJI FlightHub 2, Terra, and Modify software.
- User data security with media data encryption, local data mode, one-tap clear logs, AES-256 video transmission encryption, and Cloud API.
Key Features
- TB100 Flight Battery Not Included
- Power-Line-Level Obstacle Detection
- Rotating LiDAR & mmWave Radar
- 4 Full-Color Low-Light Fisheye Sensors
- Payload Capacity of up to 13.2 lb
- 3 Gimbal Payload Connectors
- 4 E-Port V2 Payload Ports
- Up to 59 Minutes of Forward Flight
- Up to 53 Minutes of Hover
- Video Transmission of up to 24.8 Miles
- DJI Matrice 400 Drone
- Remote Controller
- WB37 Controller Battery
- Carrying Case
- 2 x Landing Gear
- 2 x Propeller
- 6 x Propeller Washer and Screw
- Remote Controller Strap and Bracket
- USB-C Cable
- Power Cable
- 4 x Gimbal Damper
- Screws and Tools Set
- Cleaning Tools Set
- Rubber Port Covers and Screws Set
| Key Specs | |
|---|---|
| Maximum Flight Time | 59 Minutes |
| Remote ID | Yes |
| Sensing System | Omnidirectional with LiDAR/Radar Enhancement |
| Control Method | Included Transmitter |
| Weight | 11.0 lb / 5020 g (With Propellers) 21.4 lb / 9740 g (With Propellers, Battery) 34.8 lb / 15.8 kg (Takeoff) |
| Performance | |
|---|---|
| Maximum Horizontal Speed | 55.9 mph / 25 m/s |
| Maximum Ascent Speed | 22.4 mph / 10 m/s |
| Maximum Descent Speed | 17.9 mph / 8 m/s |
| Maximum Wind Resistance | 26.8 mph / 12 m/s |
| Maximum Take-Off Altitude | 4.3 Miles / 7000 m |
| Maximum Flight Time | 59 Minutes |
| Maximum Hover Time | 53 Minutes |
| Maximum Tilt Angle | 35° |
| Hovering Accuracy | Vision Positioning Vertical: ±0.3' / 0.1 m Horizontal: ±1.0' / 0.3 m RTK Vertical: ±0.3' / 0.1 m Horizontal: ±0.3' / 0.1 m GNSS Vertical: ±1.6' / 0.5 m Horizontal: ±1.6' / 0.5 m |
| Maximum Angular Velocity | 100°/s (Yaw) |
| Aircraft | |
|---|---|
| Rotor Configuration | Quadcopter |
| Propeller Size | 25" |
| Remote ID | Yes |
| Aircraft I/O | 1x USB-C Input/Output (Service) 4x E-Port Input/Output (Expansion, Power) |
| Operating Conditions | -4 to 122°F / -20 to 50°C |
| Avoidance / Sensing System | |
|---|---|
| Sensing System | Omnidirectional with LiDAR/Radar Enhancement |
| Sensing Capabilities | Forward Measurement Range: 1.3 to 68.9' / 0.4 to 21 m Detection Range: 1.3 to 656.2' / 0.4 to 200 m Field of View: 90° (Horizontal) / 90° (Vertical) Backward Measurement Range: 2.0 to 68.9' / 0.6 to 21 m Detection Range: 1.6 to 656.2' / 0.5 to 200 m Field of View: 90° (Horizontal) / 90° (Vertical) Lateral Measurement Range: 2.0 to 68.9' / 0.6 to 21 m Detection Range: 1.6 to 656.2' / 0.5 to 200 m Field of View: 90° (Horizontal) / 90° (Vertical) Downward Measurement Range: 1.6 to 62.3' / 0.5 to 19 m Field of View: 160° (Front-to-Back) / 105° (Side-to-Side) |
| Remote Controller / Transmitter | |
|---|---|
| Control Method | Included Transmitter |
| Transmission System | OcuSync 4.0 (OC4) |
| Frequencies | 2.4 GHz / 5.1 GHz / 5.8 GHz |
| Maximum Operating Distance | 30.4 Miles / 49 km |
| Transmitter I/O | 1x HDMI Output (Audio, Video) 1x USB-C Input (Power) |
| Battery Type | Built-In Lithium-Ion (6500 mAh) |
| Operating Temperature | -4 to 122°F / -20 to 50°C |
| Mobile App Compatible | No |
| Built-In Display | 7.02" (1920 × 1200) Touchscreen LCD, 1400 nits |
| Dimensions | 6.4 x 3.7 x 10.6" / 163 x 94.5 x 268 mm |
| General | |
|---|---|
| GNSS Support | GPS, GLONASS, BeiDou, Galileo |
| Diagonal Size | 3.5' / 1070 mm |
| Overall Dimensions | 29.9 x 18.9 x 38.6" / 760 x 480 x 980 mm (Unfolded) 19.3 x 18.9 x 19.3" / 490 x 480 x 490 mm (Folded) |
| Weight | 11.0 lb / 5020 g (With Propellers) 21.4 lb / 9740 g (With Propellers, Battery) 34.8 lb / 15.8 kg (Takeoff) |
| Packaging Info | |
|---|---|
| Package Weight | 44.515 lb |
| Box Dimensions (LxWxH) | 33.2 x 22.3 x 15.5" |
- Brand: DJI
- Product Code: DJMT400SPC
- Availability: In Stock
$7,699.00
