These Newcon Optik NVS 15-MAGBW Autogated Gen 3 Night Vision Goggles provide a black-and-white view in the dark, with full depth perception, for night operations including driving. Imagery is generated by two Gen 3 image intensifier tubes with a figure of merit above 1600 and a resolution of 64 line pairs per millimeter. A built-in infrared illuminator is provided for tasks in complete darkness and the goggles can focus as close as 10" away. Manual gain allows for customized use.
The goggles will run for up to 40 hours on two CR123A batteries and are compatible with a number of optional headgear mounts.
Performance
- 50° field of view for maintaining situational awareness and scanning terrain
- Dual Gen 3 black and white intensifier tubes, 1600 minimum figure of merit
- Built-in IR illuminator
- 9.8" minimum focus distance for performing gear checks, packing, and unpacking without giving away your position
Use & Handling
- Each tube can be flipped to the side when monocular format is preferable
- -6 to +4 dioptric correction on each eyepiece
- Runs for up to 40 hours on two CR123A batteries
Key Features
- Black-and-White Gen 3 Tubes
- Manual Gain Control
- >1600 FOM, 64 lp/mm Resolution
- 2 CR123A Batteries, 40 Hours Runtime
- Built-In IR Illuminator
- 9.8" Close Focus
- IP67 Waterproof
- 1-Second Startup Time
- Newcon Optik NVS 15-MAGBW Autogated Gen 3 Night Vision Goggles

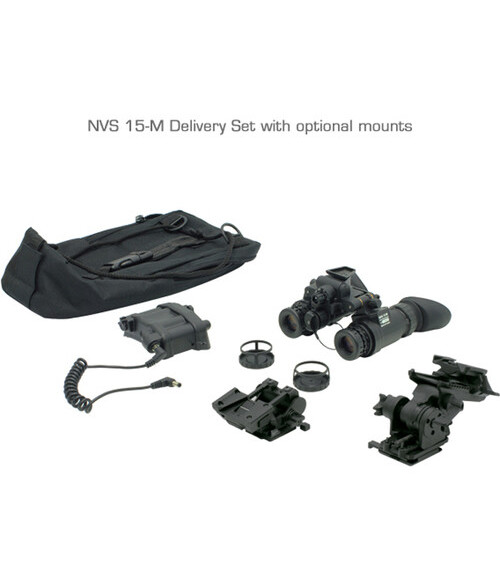

- Soft Carry Case
- 2 x Objective Lens Covers
- 2 x Eyepiece Lens Covers
- Lens Tissue
- 2 x Battery Pack
- 2 x CR123A Batteries
- Limited 1-Year Manufacturer Warranty
Dual Gen 3 Autogated Night Vision Device Specs
| Lens System | 22.5 mm, f/1.18 |
| Magnification | 1x |
| Digital Magnification | No |
| Angle of View | 50° (Apparent) |
| Minimum Focus Distance | 9.8" / 0.2 m |
| Eye Relief | 30 mm |
| Interpupillary Adjustment | 50 to 80 mm / 2 to 3.1" |
| Diopter Adjustment | -5 to +5 |
| Focus Type | Individual |
| Infrared Illuminator | Yes (Built-In) |
| Intensifier Tube | 2x Gen 3 Autogated |
| Resolution | 64 lp/mm |
| Features | Auto Shut-Off, Manual Gain |
| Display Type | No |
| Memory Card Slot | No |
| Battery | 2 x CR123A Up to 40-Hour Runtime |
| Environmental Resistance | Dust/Water-Resistant (IP67) |
| Operating Conditions | -40 to 131°F / -40 to 55°C |
| Storage Conditions | -40 to 140°F / -40 to 60°C |
| Dimensions | 4.5 x 4.1 x 3.2" / 115 x 105 x 81 mm |
| Weight | 18.2 oz / 516 g (without Batteries) |
Newcon Optik NVS 15-MAGBW Autogated Gen 3 Night Vision Goggles
- Product Code: NENVS15MAGBW
These Newcon Optik NVS 15-MAGBW Autogated Gen 3 Night Vision Goggles provide a black-and-white view in the dark, with full depth perception, for night operations including driving. Imagery is generated by two Gen 3 image intensifier tubes with a figure of merit above 1600 and a resolution of 64 line pairs per millimeter. A built-in infrared illuminator is provided for tasks in complete darkness and the goggles can focus as close as 10" away. Manual gain allows for customized use.
The goggles will run for up to 40 hours on two CR123A batteries and are compatible with a number of optional headgear mounts.
Performance
- 50° field of view for maintaining situational awareness and scanning terrain
- Dual Gen 3 black and white intensifier tubes, 1600 minimum figure of merit
- Built-in IR illuminator
- 9.8" minimum focus distance for performing gear checks, packing, and unpacking without giving away your position
Use & Handling
- Each tube can be flipped to the side when monocular format is preferable
- -6 to +4 dioptric correction on each eyepiece
- Runs for up to 40 hours on two CR123A batteries
Key Features
- Black-and-White Gen 3 Tubes
- Manual Gain Control
- >1600 FOM, 64 lp/mm Resolution
- 2 CR123A Batteries, 40 Hours Runtime
- Built-In IR Illuminator
- 9.8" Close Focus
- IP67 Waterproof
- 1-Second Startup Time
- Newcon Optik NVS 15-MAGBW Autogated Gen 3 Night Vision Goggles
- Soft Carry Case
- 2 x Objective Lens Covers
- 2 x Eyepiece Lens Covers
- Lens Tissue
- 2 x Battery Pack
- 2 x CR123A Batteries
- Limited 1-Year Manufacturer Warranty
Dual Gen 3 Autogated Night Vision Device Specs
| Lens System | 22.5 mm, f/1.18 |
| Magnification | 1x |
| Digital Magnification | No |
| Angle of View | 50° (Apparent) |
| Minimum Focus Distance | 9.8" / 0.2 m |
| Eye Relief | 30 mm |
| Interpupillary Adjustment | 50 to 80 mm / 2 to 3.1" |
| Diopter Adjustment | -5 to +5 |
| Focus Type | Individual |
| Infrared Illuminator | Yes (Built-In) |
| Intensifier Tube | 2x Gen 3 Autogated |
| Resolution | 64 lp/mm |
| Features | Auto Shut-Off, Manual Gain |
| Display Type | No |
| Memory Card Slot | No |
| Battery | 2 x CR123A Up to 40-Hour Runtime |
| Environmental Resistance | Dust/Water-Resistant (IP67) |
| Operating Conditions | -40 to 131°F / -40 to 55°C |
| Storage Conditions | -40 to 140°F / -40 to 60°C |
| Dimensions | 4.5 x 4.1 x 3.2" / 115 x 105 x 81 mm |
| Weight | 18.2 oz / 516 g (without Batteries) |
- Brand: Newcon Optik
- Product Code: NENVS15MAGBW
- Availability: In Stock
$10,559.00
