These UNVG 3APW Gen 3 White Phosphor Level 1 Night Vision Goggles/Binoculars offer high-quality light intensifier tubes and two-channel versatility in a lightweight package for comfortable operation. They can be handheld or mounted on tactical or aviation helmets, and each tube can be moved aside if desired and automatically shuts off. They run on an easy-to-find AA alkaline battery and come with an external battery pack that takes four AAs for a runtime of 50 hours.
A close-focus distance of just 10 inches and an integrated IR illuminator allows for tasks and operation in the immediate area. AGM includes a pair of demist shields to prevent fogging and sacrificial windows that protect the objective lenses from windblown sand and debris.
Performance
- 40° field of view to maintain situational awareness and scan terrain for targets
- 25mm f/1.23 lens system ensures a compact and lightweight form factor for maneuverability over rough terrain or in close quarters
- Dual Gen 3 Advanced Performance L3 or Elbit FOM 2000+ Auto-Gated white phosphor (P45) intensifier tubes
- Built-in infrared (IR) illuminator provides additional light at close range without giving your position away
- 10" minimum focus distance allows you to perform gear checks or packing/unpacking without giving away your position
Use & Handling
- Individually focusing eyepieces & objective lenses enable precise focusing when used as binoculars or monocular
- 56-72mm interpupillary adjustment range accommodates most users
- -6 to +2 dioptric correction on each eyepiece
- Manual gain control allows you to adjust image brightness and adapt it to current ambient light conditions while reducing or eliminating night blindness
- When worn on head or helmet, unit will automatically power down when stowed (flipped up) and turn on when deployed (flipped down)
Included Items
- Demist shields to prevent fogging of eyepiece lenses
- Sacrificial window is a replaceable window to protect the objective lens during operation in adverse conditions
- Soft carrying case holds NVD and accessories
Construction Details
- Compact design is easy to use by hand and comfortable to wear on your head or helmet
- Lightweight and durable fiberglass-reinforced PEEK polymer housing
- Matte finish limits reflection off NVD surface
- Runs on one included AA battery for 15-hour runtime
- Included remote battery pack takes four AAs, extends runtime up to 50 hours
Key Features
- Multicoated Optics
- Manual Gain Control
- Built-In IR Illuminator
- Use as Binoculars or Monocular
- Tube Turns Off When Moved Aside
- IP Stop Design for Preset Tube Positions
- 15-Hour Runtime on One AA Battery
- External Battery Pack: 50 Hours Runtime
- 1x25mm f/1.23 Lens System
- 10" Minimum Focus Distance

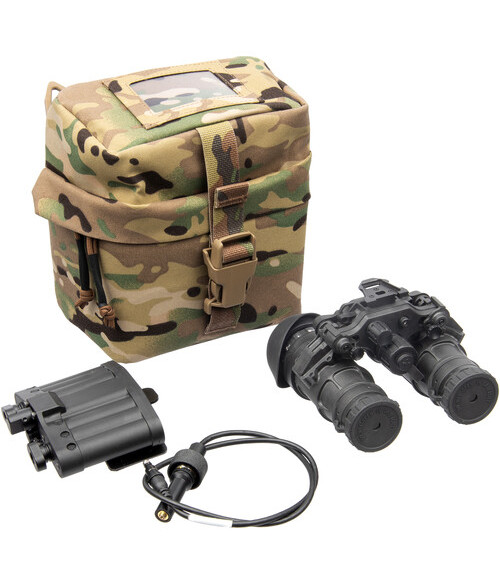

- AGM UNVG 3APW Gen 3 White Phosphor Level 1 Night Vision Goggles/Binoculars
- External Battery Pack
- Connecting Cable with Battery Adapter
- 2 x Demist Shield
- 2 x Sacrificial Window
- Neck Strap
- Carrying Case
- Lens Cloth
- AA Battery
- Limited 3-Year Manufacturer Warranty
Key Specs
| Lens System | 25mm f/1.23 |
| Magnification | 1x |
| Angle of View | 40° (Actual) |
| Minimum Focus Distance | 10" / 25.4 cm |
| Infrared Illuminator | Yes (Built-In) |
| Intensifier Tube | 2x Gen 3 Autogated, Level 1 White Phosphor |
| Resolution | 64 to 72 lp/mm |
| Memory Card Slot | No |
| Battery | 1x AA
• Up to 15-Hour Runtime or |
Performance
| Lens System | 25mm f/1.23 |
| Magnification | 1x |
| Angle of View | 40° (Actual) |
| Minimum Focus Distance | 10" / 25.4 cm |
| Eye Relief | 25 mm |
| Interpupillary Adjustment | 56 to 72 mm / 2.2 to 2.8" |
| Diopter Adjustment | -6 to +2 |
| Focus Type | Individual |
Night Vision
| Infrared Illuminator | Yes (Built-In) |
| Intensifier Tube | 2x Gen 3 Autogated, Level 1 White Phosphor |
| Resolution | 64 to 72 lp/mm |
| Features | Auto Shut-Off, Manual Gain |
General
| Display Type | No |
| Memory Card Slot | No |
| Battery | 1x AA
• Up to 15-Hour Runtime or |
| Environmental Resistance | Dust/Water-Resistant (IP67) |
| Operating Conditions | -40 to 122°F / -40 to 50°C |
| Storage Conditions | -58 to 158°F / -50 to 70°C |
| Dimensions | 4.6 x 4 x 3.3" / 11.7 x 10.2 x 8.4 cm |
| Weight | 17.6 oz / 500 g (without Battery) |
Packaging Info
| Package Weight | 5.79 lb |
| Box Dimensions (LxWxH) | 12.7 x 9.5 x 7.7" |
