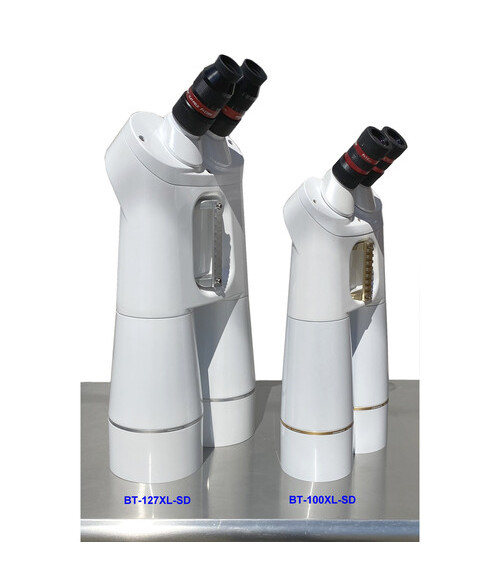

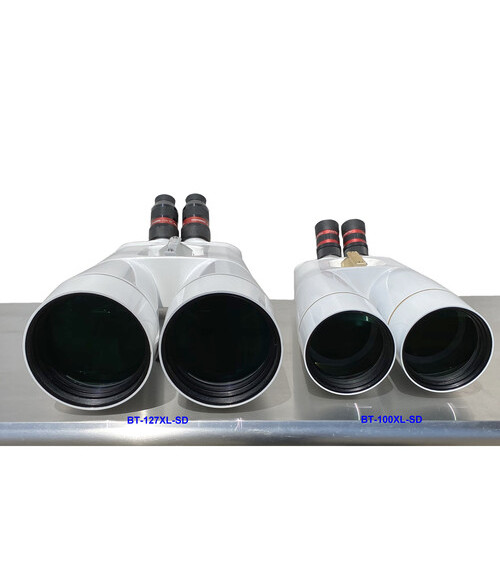

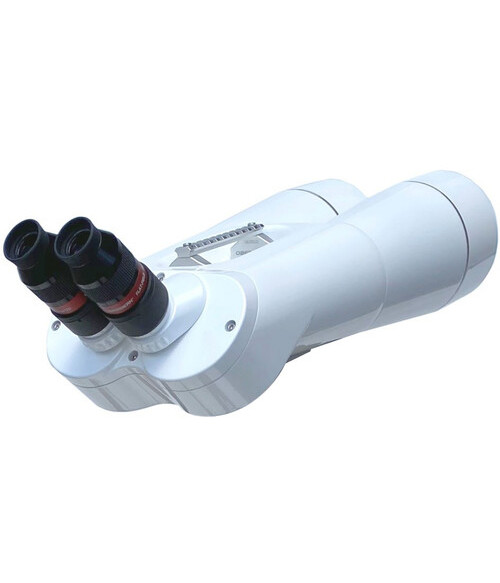

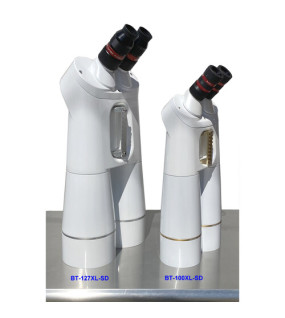

With magnifying power of 46x and easy, both-eyes-open viewing, the 127XL-SD Binocular Telescope from Oberwerk provides a satisfying alternative to traditional telescopes for astronomical or long-range terrestrial observation. The 127XL-SD is built with broadband fully multicoated, super-low dispersion objective lenses that minimize chromatic aberration or "color fringing." Unlike a telescope, the optic is fitted with prisms that cause the image to be upright, so along with celestial objects, you can observe distant ships, breaching whales, mountain peaks, etc.

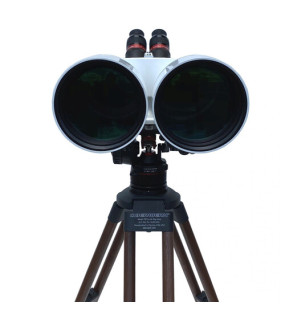

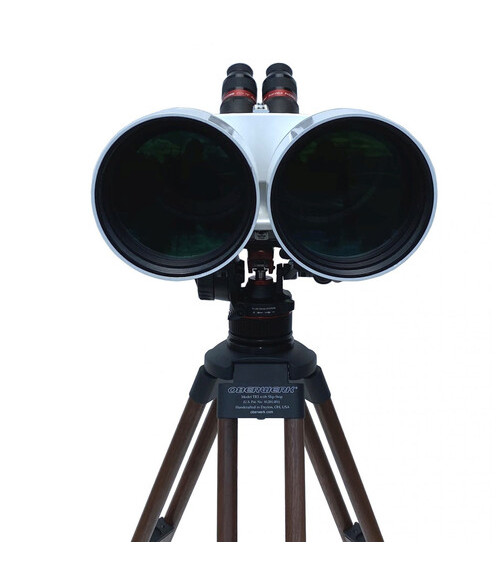

The 127XL-SD can be "go-to" automated by using the separately sold iOptron HAZ31 Strain Wave Alt-Az Mount. The optical tubes accept all 1.25" eyepieces and are held at a 45° angle for comfortable viewing. The tubes have a large interpupillary adjustment range, so everyone from children to adults can enjoy the view. Binocular telescopes are far more portable than standard telescopes and do not require specialized mounts—a video tripod with a 3/8"-16 or 1/4"-20 mounting stud will do, provided it is rated for a 24.5 lb payload. Oberwerk recommends its TR3 hardwood tripod or the Manfrotto 161MK2B, which has a crank-up elevator. Either tripod can be configured with the Oberwerk XL-280 Fork Mount or Manfrotto 612 NitroTech Head.

Optical Performance
  • 1.25", 14mm focal length eyepieces for 46x magnification, ideal for long-range terrestrial use or astronomical viewing
  • Super-low dispersion objective lenses minimize color fringing
  • Antireflection fully multicoated optics maximize light transmission for bright and clear images with accurate color rendition and improved contrast and clarity
  • Wide 70° apparent angle of view
  • Collimation certified to 163x
Use and Handling
  • Accepts any 1.25" eyepiece
  • 45° angled eyepieces for comfortable use
  • Large 50-80mm interpupillary distance adjustment range accommodates children and adults
  • With separately sold iOptron HAZ31 alt-az mount, the 127XL-SD can be "go-to" automated
  • Relatively lightweight, waterproof and nitrogen-filled magnesium body
  • Handle is a Picatinny rail for accessories such as finders or laser pointers
  • 3/8"-16 and 1/4"-20 tripod mounts
  • Tested and tuned to perfection prior to shipping
Key Features
  • 5" Super-Low Dispersion Objective Lenses
  • Full Broadband Multicoating
  • Two 14mm Eyepieces for 46x Magnification
  • Accepts All 1.25" Eyepieces
  • 45° Angled Eyepieces
  • Nitrogen-Filled, Fog & Waterproof
  • Wide 50-80mm Interpupillary Range
  • 1/4"-20 and 3/8"-16 Mounting Sockets
  • Sturdy Aluminum-Frame Case


Items Included
  • Oberwerk 127XL-SD Binocular Telescope
  • 2 x 14mm 1.25" Eyepiece
  • Wheeled Aluminum Frame Case
  • Limited 5-Year Manufacturer Warranty


Key Specs

Prism Type Porro (BAK4)
Magnification 46x
Objective Lens Diameter 127 mm
Angle of View 30x: 2.35° (Actual)
Field of View 123.4' @ 1000 yd / 41 m @ 1000 m
Exit Pupil Diameter 30x: 5.3 mm

Performance

Magnification 46x
Objective Lens Diameter 127 mm
Angle of View 30x: 2.35° (Actual)
Field of View 123.4' @ 1000 yd / 41 m @ 1000 m
Minimum Focus Distance 82' / 25 m
Exit Pupil Diameter 30x: 5.3 mm
Eye Relief 18 mm
Interpupillary Adjustment 57 to 80 mm / 2.2 to 3.1"
Diopter Adjustment No
Focus Type Individual

Features

Stabilization Freedom No
Fogproof Yes: Nitrogen Filled
Environmental Resistance Water-Resistant (Unrated)

General

Dimensions Length: 24" / 61 cm
Weight 24.5 lb / 11.1 kg
Package Weight 58.5 lb
Box Dimensions (LxWxH) 31.5 x 19 x 14.25"

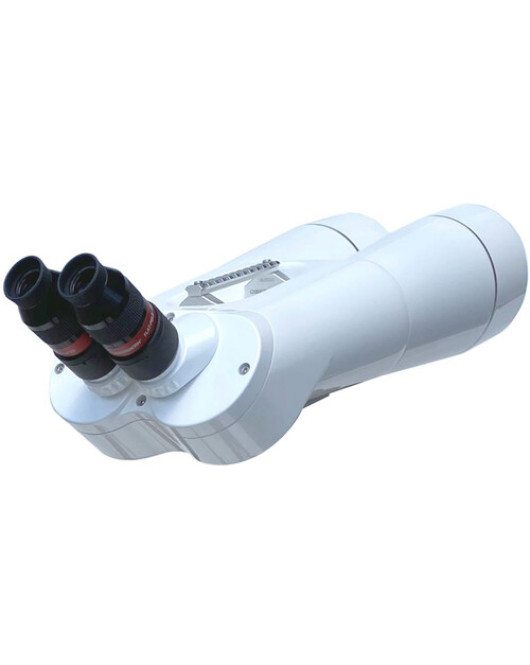

Oberwerk 127XL SD Binocular Telescope

  • Product Code: OBBT127XLSD

With magnifying power of 46x and easy, both-eyes-open viewing, the 127XL-SD Binocular Telescope from Oberwerk provides a satisfying alternative to traditional telescopes for astronomical or long-range terrestrial observation. The 127XL-SD is built with broadband fully multicoated, super-low dispersion objective lenses that minimize chromatic aberration or "color fringing." Unlike a telescope, the optic is fitted with prisms that cause the image to be upright, so along with celestial objects, you can observe distant ships, breaching whales, mountain peaks, etc.

The 127XL-SD can be "go-to" automated by using the separately sold iOptron HAZ31 Strain Wave Alt-Az Mount. The optical tubes accept all 1.25" eyepieces and are held at a 45° angle for comfortable viewing. The tubes have a large interpupillary adjustment range, so everyone from children to adults can enjoy the view. Binocular telescopes are far more portable than standard telescopes and do not require specialized mounts—a video tripod with a 3/8"-16 or 1/4"-20 mounting stud will do, provided it is rated for a 24.5 lb payload. Oberwerk recommends its TR3 hardwood tripod or the Manfrotto 161MK2B, which has a crank-up elevator. Either tripod can be configured with the Oberwerk XL-280 Fork Mount or Manfrotto 612 NitroTech Head.

Optical Performance
  • 1.25", 14mm focal length eyepieces for 46x magnification, ideal for long-range terrestrial use or astronomical viewing
  • Super-low dispersion objective lenses minimize color fringing
  • Antireflection fully multicoated optics maximize light transmission for bright and clear images with accurate color rendition and improved contrast and clarity
  • Wide 70° apparent angle of view
  • Collimation certified to 163x
Use and Handling
  • Accepts any 1.25" eyepiece
  • 45° angled eyepieces for comfortable use
  • Large 50-80mm interpupillary distance adjustment range accommodates children and adults
  • With separately sold iOptron HAZ31 alt-az mount, the 127XL-SD can be "go-to" automated
  • Relatively lightweight, waterproof and nitrogen-filled magnesium body
  • Handle is a Picatinny rail for accessories such as finders or laser pointers
  • 3/8"-16 and 1/4"-20 tripod mounts
  • Tested and tuned to perfection prior to shipping
Key Features
  • 5" Super-Low Dispersion Objective Lenses
  • Full Broadband Multicoating
  • Two 14mm Eyepieces for 46x Magnification
  • Accepts All 1.25" Eyepieces
  • 45° Angled Eyepieces
  • Nitrogen-Filled, Fog & Waterproof
  • Wide 50-80mm Interpupillary Range
  • 1/4"-20 and 3/8"-16 Mounting Sockets
  • Sturdy Aluminum-Frame Case


Items Included
  • Oberwerk 127XL-SD Binocular Telescope
  • 2 x 14mm 1.25" Eyepiece
  • Wheeled Aluminum Frame Case
  • Limited 5-Year Manufacturer Warranty


Key Specs

Prism Type Porro (BAK4)
Magnification 46x
Objective Lens Diameter 127 mm
Angle of View 30x: 2.35° (Actual)
Field of View 123.4' @ 1000 yd / 41 m @ 1000 m
Exit Pupil Diameter 30x: 5.3 mm

Performance

Magnification 46x
Objective Lens Diameter 127 mm
Angle of View 30x: 2.35° (Actual)
Field of View 123.4' @ 1000 yd / 41 m @ 1000 m
Minimum Focus Distance 82' / 25 m
Exit Pupil Diameter 30x: 5.3 mm
Eye Relief 18 mm
Interpupillary Adjustment 57 to 80 mm / 2.2 to 3.1"
Diopter Adjustment No
Focus Type Individual

Features

Stabilization Freedom No
Fogproof Yes: Nitrogen Filled
Environmental Resistance Water-Resistant (Unrated)

General

Dimensions Length: 24" / 61 cm
Weight 24.5 lb / 11.1 kg
Package Weight 58.5 lb
Box Dimensions (LxWxH) 31.5 x 19 x 14.25"
  • Brand: Oberwerk
  • Product Code: OBBT127XLSD
  • Availability: In Stock
Oberwerk

$3,499.00
